BB GUN
gif/bbc.gif

RETURN TO TOP
MY 1ST RADIO
gif/radio.gif

RETURN TO TOP
TRISECTION OF AN ALLEY!
gif/7.gif
Since: C = 6 = H/3
Therefore: sin3Æ = 18/20 = 0.9
3Æ = 64.15806o

Æ = 21.38602o @ 21o 23' 9.82''

Width W = 20cosÆ
= 20*0.931145
= 18.6229 feet
Thus the alleyway is about 18 feet 7 15/32 inches wide!


RETURN TO TOP
ELECTRIC MOTORS
gif/electro.gif

RETURN TO TOP
DOUBLE YOUR VOLTAGE
gif/voltage.gif

RETURN TO TOP
2 SPEED FORWARD & REVERSE ENGINE
gif/2xspeed.gif

RETURN TO TOP
RATIO
gif/ratio.gif

RETURN TO TOP
AREA MEASURING!
Carefully trace the perimiter
(any) with the small blade
& the sliding long blade
will displace the area's scale!
- a cheap planimeter!
gif/knife.gif

RETURN TO TOP
NORTH
Point your dial: midway between
the hour hand & 12 at the sun;
noon now points NORTH / SOUTH!
gif/time.gif

RETURN TO TOP
MUSIC
(Click to enlarge)
gif/music.gif

RETURN TO TOP
ELECTRIC CIRCUIT SOLVING
anim/electric.gif
gif/circuit.gif

RETURN TO TOP
OVER CHARGED CAPACITOR!
gif/farad.gif

RETURN TO TOP
CURRENT: NON STEADY STATE
gif/vstate.gif

RETURN TO TOP
VISIBLE SPECTRUM!
anim/roygbiv.gif
gif/roygbiv.gif
NEXT TIME, LOOK AT A PICTURE PUZZLE
UNDER A LARGE, THICK GLASS, MAGNIFIER!

RETURN TO TOP
THE ELECTROMAGNETIC SPECTRUM!
gif/e/tele1.gif

RETURN TO TOP
FISSION
Electrical repulsion tween the protons rips the nucleus apart! gif/fission.gif
The 'MOLE' is Chemisty's "Rossetta Stone"!

RETURN TO TOP
A-BOMB
gif/abomb.gif
  1.  Altimeter trigger.
  2. Explosive charge.
  3. Thick casing.
  4. United forms a complete
       sphere of uranium of
       greater-than-critical mass!
anim/atom1.gif

RETURN TO TOP
ATOMIC SUBMARINE: USS NAUTILUS 1954 gif/asub.gif
  1. Reactor.
  2. Engineering room.
  3. Missille compartment: 16.
  4. Missille control center.
  5. Control center of sub.
  6. Gyro room: 50-ton gyro stabillizers.
  7. Tanks nagative.
  8. Tanks 2.
  1. Batteries.
  2. Main ballast tank.
  3. Torpedo room.
  4. Control center of sub.
  5. Missille control center.
  6. Quarters of crew & officers.
  7. Mess room.
  8. Periscope.

RETURN TO TOP
NUCLEAR REACTOR
gif/reactor.gif

RETURN TO TOP
FOLDING, EDGING & COLD BENDING
  Up to thickness of s:
Tensile strength of: 11.5 2.53456 7 8101214161820
-> 40 kg/mm311.6 2.53568 1012162025283640
-> 50 kg/mm31.22 3 458101216202528364045
-> 65 kg/mm31.62.5 4568101216202532364560
  Correction factor q:
Ratio R:s5.03.02.01.20.80.5
Correction factor:1.00.90.80.70.680.5
An example for computing the length before bending:
gif/bendng.gif
Length of legs:
a=50, b=130, c=240, d=50
Bend radius:
R1=20, R2=20, R3=32
Thickness: s=10
ie. 6 mm @ 63 kg/mm3
Bend angles:
α1=90o, α2=45o, α3=135o
Correction factors:
q1=0.8, q2=0.8, q3=0.96
COMPUTATIONS:
L = a + (R1 + q1 * s/2)π α1/180
    + b + (R2 + q2 * s/2)π α2/180
    + c + (R3 + q3 * s/2)π α3/180 + d

    = 50 + (20 + 0.8 * 10/2) 22/7 * 90/180
        + 130 + (20 + 0.8 * 10/2)22/7 * 45/180
        + 240 + (32 +0.96 * 10/2)22/7 * 135/180 + 50

    = 50 + (24) 11/7 + 130 + (24)11/14 + 240 + (36.8)33/14 + 50

    = 50 + 24 * 1.57 + 130 + 12 * 1.57 + 240 + 18.4 * 4.71 + 50
    = 50 + 37.68 + 130 + 18.84 + 240 + 86.664 + 50
    = 613 mm. in length.

RETURN TO TOP
MY 1ST DRAWING
gif/dwgs.gif

RETURN TO TOP
BEARING LOADS
gif/bearings.gif
A load of 100 lbs. (down) is exerted on the left pulley
and a load of 50 lbs. (up) is exerted on the right pulley.
SM from left = 0 = -100 x 10 + RB x 20 + 50 x 28
The right bearing RB supports: (-100x10 + 50x28)/-20 = -20 lbs. (down).
SM from right = 0 = LB x 28 - 100 x 18 - 20 x 8
The left bearing supports: (-100x18 - 20x8)/-28 = +70 lbs. (up).
CURVES & SLOPES
y = f(x): any point on a curve defined by f(x)
slope = (y2 - y1)/(x2 - x1)= delta y /delta x
delta y /delta x = d(y) / dx = f '(x)
slope = d(y) / dx = f '(x): at any point x1 on line f '(x1) = y'1 = V
acceleration = d2(y) / dx = f ''(x): at any point x1 on line f ''(x1) = y''1 = M
MOMENT & SHEAR
Moment = Force x Distance = Shear x Length
or M = F x D = V x L
V = M/L = d(M)/dx
ie. V or shear = slope of Moment curve.
A constant Shear of +70 gives a constant slope for M of @ +45o
A constant Shear of -30 gives a constant slope for M of @ -25o
A constant Shear of -50 gives a constant slope for M of @ -40o
or vice versa!
Moment at point (1) is +70 x 10 = 700 in-lbs. from the left.
Moment at point (2) is +70 x 20 -100 x 10 = 400 in-lbs. from the left.
or
Moment at point (1) is +50 x 18 - 20 x 10 = 700 in-lbs. from the right.
Moment at point (2) is +50 x 8 = 400 in-lbs. from the right.

[The gravity pt of a triangle is 1/3 from larger end]
Z1EI = moment area of A 1, A2 & A3 about point (2)
  = (10 x 700/2) x (10 + 10/3) + 10 x 400 x 5 + (10 x 300/2) x (20/3) = 78,667 lb-in3
Z2EI = Z1EI/(10/20) = 38,333 lb-in3
Z3EI = Z1EI/(28/20) = 107,334 lb-in3
Z4EI = moment of area A1 about point (1) = (10 x 700/2) x (10/3) = 11,667 lb-in3
Z5EI = moment area of A1, A2, A3 & A4 about point (3)
  = (10 x 700/2) x (18 + 10/3) + 10 x 400 x 13 + (10 x 300/2) x (8 + 20/3) + (8 x 400/2) x (16/3) = 157,216 lb-in3
ε2EI = Z2EI - Z4EI = 38,333 - 11.667 = 26,666 lb-in3
ε1EI = Z5EI - Z3EI = 157,216 - 107,334 = 49,882 lb-in3
[ E = 3 x 107 psi (steel) ] and [ I = (pi x d4)/64 = (22/7 x 24)/64 = 0.785 in4 ]
ε1 = 49,882/(3 x 107 x 0.785) = 0.002118 ins.
ε2 = 26,666/(3 x 107 x 0.785) = 0.001132 ins.
CRITICAL SPEED

W1ε1 = 50 x 2.118 x 10-3  = 10.59 x 10-2

W2ε2 = 100 x 1.132 x 10-3 = 11.32 x 10-2
                      S1 = 21.91 x 10-2

W1ε1² = 2.243 x 10-4

W2ε2² = 1.282 x 10-4
  S2 = 3.525 x 10-4


      ________       _______________________

wc = ÖgxS1 / S2  =  Ö 386x0.2191 / 0.0003525

= 490 rad. / sec. = 490 x 60 x 7 / 22  = 9,300 RPM. max.

RETURN TO TOP
APPARENT HEADING 35o!
gif/heading.gif

RETURN TO TOP
FLIGHT SPEEDS!
gif/e/flightspd.gif

RETURN TO TOP

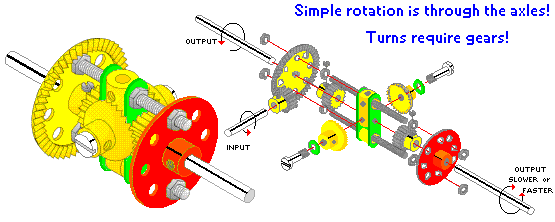

MECCANO'S UNIVERSAL JOINT
1 wheel power!
gif/union.gifgif/gear.gif

RETURN TO TOP

LaGrange example:
Problem:
F = grad ø = d/dx i + d/dy j + d/dz k = Force Potential [1]
F = (5zSINx + y)i + (4yz + x)j + (2y² - 5COSx)k [2]

Solution:
From [1] & [2]:
Since: d/dxø = 5zSINx + y
Therefore: ø = - 5zCOSx + yx + f1(y,z) [3]
f1 is an arbitrary constant or function without 'x'.
Since: d/dyø = 4yz + x
Therefore: ø = 4y²z/2 + xy + f2(x,z) [4]
f2 is an arbitrary constant or function without 'y'.
Since: d/dzø = 2y² - 5COSx
Therefore: ø = 2y²z - 5zCOSx + f3(x,y) [5]
f3 is an arbitrary constant or function without 'z'.
From [3] & [1]:
Since: d/dyø = x + d/dyf1(y,z)
and since: d/dyø = 4yz + x
Therefore: d/dyf1(y,z) = 4yz
Thus: f1 = 4y²z/2 + c1 [6]
c1 is an arbitrary constant.
Substituting [6] into [3] gives:
ø = - 5zCOSx + yx + 4y²z + c1 [7]
From [4] & [1]:
Since: d/dzø = 2y² + d/dzf2(x,y)
and since: d/dzø = 2y² - 5COSx
Therefore: d/dzf2(y,z) = - 5COSx
Thus: f2 = - 5zCOSx + c2 [8]
c2 is an arbitrary constant.
Substituting [8] into [4] gives:
ø = - 5zCOSx + yx + 4y²z + c2 [9] = [7]

The answer in work units W = F x D = F x 2ør = f(ø):
From [7] & [9]:
ø = - 5zCOSx + yx + 4y²z + c
c is an arbitrary constant.


RETURN TO TOP
PSYCHIATRIST'S ILLUSION OR PEACE SIGN?
gif/2.gif
RETURN TO TOP
3D VECTOR GRAPHICS?
gif/gallows.gif
RETURN TO TOP
PERSONALITY
gif/psyche.gif

Psychiatric oath?!:
I am so biased that I can't see staight!
If I weren't forced to believe what I'd read
I wouldn't be able to get my job done!
Ideal Psychiatric oath?!:
I swear an oath to CRETE or turn into concrete;
I dont need concrete evidence that they're NUTS!
- uncles excluded!
- call me MANDRAKE, a weed!
Psychiatry!:
Good thing my kids are NUTS;
parents are s-s-o-o-o lousy at raising their kids;
but it proves I can do my "JOB"!
Psychiatric Ads!:
Just because the ad in the Psychiatric Journal said so;
and I don't think so; doesn't mean I have to wrap the
NUT up!
- why kill the 'cashcow'!
- who deserves 'payola' more!
Ideal IQ question or questions?!:
  1. Lord?
  2. 1st. born?
  3. Santa Claus?
  4. Angel?
  5. Parent?
  5. In control of one's steering wheel?
  6. Baby sitter?
  7. Tug-of-war?
  8. Building-block?
  9. Cross-section-of-Society?
10. At the front line defeating satan & his angels?
11. Missionary?
12. Trained in Heaven to entertain?
13. Trained in Heaven to Crusade?
14. Mean Esper?
15. Waving a sheet of his works like a 'white flag'?
16. All the above?

RETURN TO TOP
  3D PMAT TEST
  HOVER YOUR CURSOR OVER CIRCLES
  TO SEE ANSWER ON STATUS LINE BELOW!
RETURN TO TOP
  ANTONYM QUIZ
  HOVER YOUR CURSOR OVER CIRCLES
  TO SEE ANSWER ON STATUS LINE BELOW!
gif/test3.gif
RETURN TO TOP
2 WAYS TO GET TRUE LENGHT
gif/trulnght.gif
RETURN TO TOP
ALL TRUE LENGHTS ARE INDICATED IN OR BY RED LINES
gif/trutran.gif
RETURN TO TOP
TOP & SIDE VIEW WITH 2 PLANES!
gif/objctpln.gif
RETURN TO TOP
AN ANALYTICAL TEST:
Which group does not belong?
CLICK for a HINT
gif/analytcl.gif
RETURN TO TOP RETURN TO TOP
ARE YOUR LINES OR LETTERS THIN OR WIDE AND JUMPING;
ESPECIALY WHEN DRAGGED BY A MOUSE!
IT'S BECAUSE VECTOR GRAPHICS CAN ONLY EMULATE HIGH RESOLUTION!
ROY G BIV: RGB
gif/bytes.gif
HOW IS A PICTURE STORED (my opinion):
EVERY OTHER LINE & BY COLOR, WITH BLEEDING INBETWEEN FOR A LARGER PICTURE!
RETURN TO TOP
CALCULATE FORCES
gif/forces.gif 		SOLUTIONS: [S F=0]
1. GRAPHICS:
Drawing all known forces to scale and
drawing intersection point 'P' with given angles for T & C.
Tension = 8.5582(+) & Compression = 2.8880(-) [measured]

2. x'-y'AXIS PARALLEL TO MEMBER 'T':
[S Fx'=0] -Ccos10 -3cos40 -8sin40 +16sin40 = 0
C = 2.8880
[S Fy'=0] T +8cos40 -16cos40 -3sin40 -Csin10 = 0
T = 8.5582

3. SIMULTANEOUS EQUATIONS:
[S Fx=0] +8 + Tcos40 +Csin30 -16 = 0
0.7660T +0.5C = 8          [1]
[S Fy=0] Tsin40 -Ccos30 -3 = 0
0.6428T -0.8660C = 3     [2]

T = 8.5582 & C = 2.8880
RETURN TO TOP
CALCULATE FORCES ON A HINGE 'A'
gif/beam.gif 		SOLUTIONS: [S F=0 & S M=0]
1. MOMENT ABOUT 'A':
[S Ma=0]
-.25Tcos25 +(5 -.12)Tsin25 -10(5 -1.5 -.12) -4.66(2.5 -.12) = 0
Tension = 19.61(+)

2. EQUATING x & y FORCES ABOUT 'A':
[S Fx=0] Ax -19.61cos25 = 0
Ax = 17.77
[S Fy=0] Ay +19.61sin25 -4.66 -10 = 0
Ax = 6.37
From which 'A' = 18.88 = Ax^2 + Ay^2 = 17.77^2 + 6.37^2

3. MOMENT ABOUT 'A' FOR COMBINED WEIGHT 14.66=10+4.66:
[S Ma=0] -19.61(5)sin25 +14.66(DISTANCE) = 0
DISTANCE = 2.2756

4. GRAPHICS:
Drawing all known forces to scale and
and closing the yellow triangle gives
'A' = 18.88 compression(-) & b = 20o                   [measured]
Locating point 'P' also gets DISTANCE = 2.2756  [measured]
RETURN TO TOP
BUILDING A BRIDGE
gif/bridge2.gif
TABLE
#LASugε g=LSug/Aufε f
1122-P0000
2182-.75P0000
31531.25P0000
492-2P001-9P
5155-1.25P0000
6183-.5P001-3P
7155-2.5P-5P/2/13½18.75P/13½00
81820-3P/2/.5000
915305P/2/13½000
1093-2P-3P/13½18P/13½00
111220-2P/13½000
S=    36.75P/13½ -12P
Δg=ε g/E=36.75*12*2000/13½/29/106=0.008435''
Δg=0.54/64''
Δgx=0.45/64'' - horizontal displacement
Δgy=0.30/64'' - vertical displacement
Well within limits!!
Bridge will but against roadway!
Δf=ε f/E=12*12*2000/29/106=0.000000''
E=10^6 psi STEEL
P=1 TON truck
L in feet
A is normaly 20x larger for I BEAMS
PROBLEM:
Construct the bridge described in note 1. on the left and
find out the deflection at the rightmost point, or overhang,
to merge with a roadway.
Cross section may be 20 to 50 times larger than given.
- Note 2. shows released structure with references.
- Note 3. shows all elements numbered.
- (+) = TENSION & (-) = COMPRESION
SOLUTIONS: [S F=0 & S M=0]
IN NOTE 2.:
At point 'D': [S Md=0 & S Fy=0] At point 'G': [S Mg=0 & S Fy=0]
-3P(2*9') +Fy3(3*9') = 0
Fy3 = 2P 		Fy5(4*9') +2P(1*9') -3P(2*9') = 0
Fy5 = P
At point 'F': [S Fx=0] At point 'D': [S Fx=0]
Point 'F' is free to move.
Thus Fx2 = 0 		Point 'D' is pinned.
Thus Fx4 = 2P
IN NOTE 4.:
Member #12 is cut and a TENSION of 1 lb. force is exerted on it. [S F=0]
At point 'G': [SF=0 & F²=Fx²+Fy²]
Fgy=F[11]=-F[12]*(L[11]/L[12])
F[11]=-1*(2/13½))
F[11] = -2/13½ 		Fgx=F[10]=-F[11]*(L[9]/L[11])
F[10]=-1*(3/13½))
F10] = -3/13½
At point 'C': [SF=0 & F²=Fx²+Fy²]
F[9]=-F[11]*(L[9]/L[11])
F[9]=-(-2/13½)*5/4
F[9] = 5/2/13½ 		F[8]=-F[9]*(L[8]/L[9])
F[8]=-(5/2/13½)*3/5
F[8] = -3/13½
At point 'F': [SF=0 & F²=Fx²+Fy²]
Fy[7]=-Fy[9]=-F[11]
Fy[7] = 2/13½
F[7] = (2/13½)*5/4
F[7] = -(5/2/13½) 		Fx[6]=-Fx[7]+F[10]
Fx[6]=-F[10]+F[10]=0
Fx[6] = 0
At point 'B': [SF=0 & F²=Fx²+Fy²]
Fy[12]=F[12]*(2/13½)=1*2/13½
Fy[7]=F[7]*(4/5)=
-5/2/13½*(4/5)=-2/13½
Fy[10]+Fy[7]=0 		Fx[12]=F[12]*(3/13½)=1*3/13½
Fx[7]=F[7]*(3/5)=
-5/2/13½*(3/5)=-3/2/13½
Fx[2]+Fx[7]>+Fx[12]>+Fx[8]=0
Fx[2] -3/2/13½ + 3/13½ -3/2/13½=0
F[2]=0
IN NOTE 5.:
Point 'F' has a TENSION of 1 lb. force is exerted on it.[S F=0]
At point 'F': [SF=0 & F²=Fx²+Fy²]
By inspection F[4]=F[6]=1
IN NOTE 6.:
Release structure has member #12 removed. [S F=0]
At point 'A': [SF=0 & F²=Fx²+Fy²] At point 'B': [SF=0 & F²=Fx²+Fy²]
F[3]=5P/4
F[2]=-F[3]x*3/5=-3P/4
F[1]=-F[3]y*4/5=-P4 		F[7]y=-F[7]*4/5=+5P/2*4/5=2P
F[5]y=-F[5]*4/5=+5P/4*4/5=P
F[7]y+F[5]y-3P=0
At point 'E': [SF=0 & F²=Fx²+Fy²] At point 'F': [SF=0 & F²=Fx²+Fy²]
F[3]y=-F[3]*4/5=-5P/4*4/5=-P
F[5]y=-F[5]*4/5=+5P/4*4/5=P
F[3]y+F[5]y=0

F[3]x=-F[3]*3/5=-5P/4*3/5=-3P/4
F[5]x=-F[5]*3/5=+5P/4*3/5=3P/4
F[4]=-2P

F[3]x+F[5]x+F[4]+F[6]=0
F[6]=-F[3]x-F[5]x-F[4]
F[6]=3P/4-3P/4+2P
F[6]=2P
[too large: stationary point] 		F[7]y=-F[7]*4/5=+5P/2*4/5=2P
F[9]y=-F[9]*4/5=0
F[7]y-2P=0

F[7]x=-F[7]*3/5=+5P/2*3/5=+3P/2
F[9]x=-F[9]*3/5=0
F[10]=-2P

F[6]+F[7]x+F[9]+F[10]=0
F[6]=-F[7]x-F[10]=-3P/2+2P=P/2
F[6]=P/2 [TENSION]
By inspection NOTES 5 & 4 do not react with each other so DELTA centre = 0
RETURN TO TOP
ENERGY CONVERSION           by Medard Gabel
  Anthracite Coal
tons 		Oil
barrels 		Natural Gas
cu ft 		U-235
grams 		Deutrium
grams
1 kwh = 129E-6 608E-6 3.51 43.5E-6 15.1E-6
1 joule = 35.9E-12 172E-12 1030.9E-12 12E-12 4.21E-12
1 metric ton (10E6 BTU)
abthracite coal = 		1 5 25,400 .33 .12
1 barrel (42 gal)
oil = 		.21 1 5,470 .071 .026
1 cu ft (dry)
natural gas = 		39E-6 180E-6 1 13E-6 4.54E-6
1 gram
U-235 = 		3 14 79,300 1 3.5
1 gram
deutrium = 		8.6 40 227,000 2.9 1
RETURN TO TOP
SQUARE ROOT TO FIFTH ROOT! gif/htmath.gif
CALCULUS APPROXIMATIONS FOR:
(124)1/3 = sin(60o 1') =
y = x1/3, dy = (1/3)(x)-2/3dx
x = 125 = 53, dx = -1,
dy = (1/3)125-2/3(-1) = -1/75 = -.1033
(124)1/3 = y + dy = 5 - .0133 = 4.9867 		y = sin(x), dy = cos(x)dx, x = 60o, dx = +1' = .0003 rad.
y = (3.5)/2 = .86603
dy = cos(x)dx = .5(.0003) = .00015
sin(60o 1') = y + dy = .86603 + .00015 = .86618
CALCULUS WEIGHT FOR: CALCULUS ROOT FOR:
.5''Dia. copper tube 8' long 1/8''thick 2cosx - x2 = 0 or y = 2cosx = x2 or y = 2cosx - x2
p = 3.1415926536
Specific weight of copper is 550 lb/ft3
V = 8pr2
dV = 16prdr
dr = (1/8)/12 ft
r = (1/4)/12 ft
dV = 16p(1/48)(1/96) = p/288 ft3
Weight is 550(p/288) = 6 lb. 		Curves y = 2cos(x) & y = x2 give intersects » ±1
because of symetry let x1 = 1, first approximation
x2 = x1 + dx1 = x1 - y1/f'(x1) = x1 - f(x1)/f'(x1) =
        1 - (2cos(1) - 12)/(-2sin(1) - 2(1)) =
        1 + (2(.5403) - 1)/(2(.9415) + 2) = 1.02
x3 = 1 - (2cos(1.02) - 1.022)/(-2sin(1.02) - 2(1.02)) =
        1.02 + (.0064)/(3.7443) = ±1.0217
to 4 decimal places.

THE # IS DIVISIBLE BY: THE # IS DIVISIBLE BY:
2, if it is even
3, if the sum of its digits is div. by 3
4, if the last 2 digit # is div. by 4
5, if the last digit is a 5 or 0
7, if the # is 100a+b and a+4b =>0mod7
ie. 257 => 2+4*57=238 => 2+4*38=154  		  6, if the # is even and div. by 3 =>0mod3
  8, if the last 3 digits is div. by 8
  9, if the sum of its digits is div. by 9
10, if the last digit is 0
11, if the diff. of the sums of odd-even =>0mod11
ie. 92,213 => 3+2+9-1-2=14-3=11
THE ABACUS HAS BEATEN EVERY COMPUTER IN SPEED!
RETURN TO TOP
MY "AUTOCAD" HOOK
IF YOU KNEW EVERYTHING ABOUT ELLIPSES
AND AUTOLISP YOU WOULD HAVE NO TROUBLE
DRAWING UP THIS CABLE HOOK, IN 'AUTOCAD'!
AS I'VE DONE IT, THERE IS NOTHING TO IT!
IN ProENG. I WAS FORCED TO USE VERTEX POINTS!
gif/hook1.gif

RETURN TO TOP
3D CURVE
gif/3dcurve.gif
RETURN TO TOP
SPOT WELDING
gif/e/sptwldng.gif
RETURN TO TOP
GATE FUNCTIONS
gif/e/gates.gif
RETURN TO TOP
NPN TRANSISTORS
gif/e/npn.gif
RETURN TO TOP
GYRO PLANES
gif/e/gyro001.gif

RETURN TO TOP
HARNESS THE SUN
gif/e/ecosystm.gif

RETURN TO TOP
FAST AREA?
gif/e/areamn.gif

RETURN TO TOP
ELECTRONIC CHIPS
gif/e/chips.gif

RETURN TO TOP
FOCUS
gif/focus.gif

RETURN TO TOP
LOADER PLAN
gif/excavtr.gif

RETURN TO TOP
TRISECTION MECHANISM
gif/3.gif

RETURN TO TOP
AMPLIFIER
gif/e/amplifier.gif

RETURN TO TOP
ORCHESTRA INSTRUMENTS
gif/e/orchstra.gif

RETURN TO TOP
CALCULUS'  VOLUME OF A CONE:

  height = h with base (x/R)2 + (y/R)2 = 1
gif/e/cone1h.gif
r/R = (h - z)/h or r = R(h - z)/h
dr/dz = -R/h or dr= -(R/h)dz
Area = (r*dz - dr*dz/2) = R/h((h - z)*dz + dz2/2)
Volume = Area*ds = Area*r*d
Volume = Area*ds = (R/h)[(h - z)*dz]r*d
Volume = (R/h)2[(h - z)2*dz]d
Volume = (R/h)2(h - z)2*dz
Volume = (R/h)2[(h - z)3/3]
Volume = R2h/3


RETURN TO TOP
CALCULUS'  VOLUME OF A SPHERE:


gif/e/cone4.gif
Volume of a sphere:
Volume = dV = ds*ds1*ds2
Volume = (p*d)(psin*d)(dp)
Volume = 4p2sin*dp*d*d
Volume = (4/3)R3sin*d*d
Volume = (4/3)R3sin*d
Volume = (4/3)R3(-cos)sinb0290.gif
Volume = 4R3/3


RETURN TO TOP
OPTICAL ILLUSION VII
gif/puzz7o.gif
Will the 3 rd solid pass thru all the 1 st holes?

MAIN MENU HOME PAGE
ART MENU 0 1 2 3 4 5 6 [7] 8 9 10
